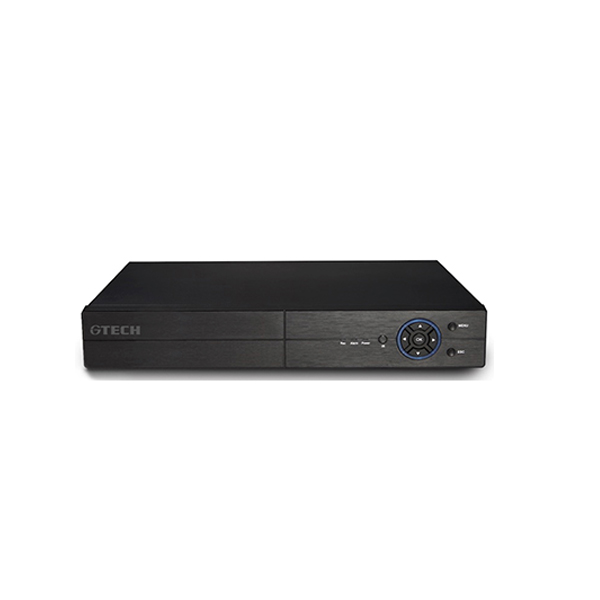

4 Channel Hybrid DVR
Product Highlights
- Brand : GTECH
- Model: GT-AHD-DVR(W)504-5MP
- Country of Origin Taiwan
- 1 Year Replacement Guarantee
Key Features:
- Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings
- Support VGA, HDMI full HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, VMS, center platform management software MYEYE, provide SDK development
- Support various mobile monitoring (iPhone, Android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support XVI/AHD/TVI/CVI/CVBS/IP six signals
in stock
Description
| System | Main processor | NT98321 |
| Interface | Preview | 1/4/8/9 |
| Video | Codec | H.265+ |
| Monitor quality | VGA(1080P at most);HDMI(2K at most) | |
| Preview ability | 4*5M-N@12fps(6 in 1) | |
| Encode ability | 4*5M-N@12fps(6 in 1) | |
| Decode ability | 4*5M-N@12fps(6 in 1) | |
| Multi-mode input | Analog：4*5M-N, Network：8*1080P；4*5M | |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | Support | |
| Record & playback | Record mode | Manual>alarm>motion detection>timing |
| Local Playback | 4ch(analog input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & backup | Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner | |
| External Interface | Video input | 4ch BNC |
| Video output | 1ch VGA, 1ch HDMI， 1ch BNC | |
| Loop Vout | N/A | |
| Audio I/O | 4/1 | |
| Alarm I/O | 0/0 | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | 1*RS485, Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 1*SATA ports (Max 8TB) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/2A |
| Power Consumption | <15W (without HDD) | |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
