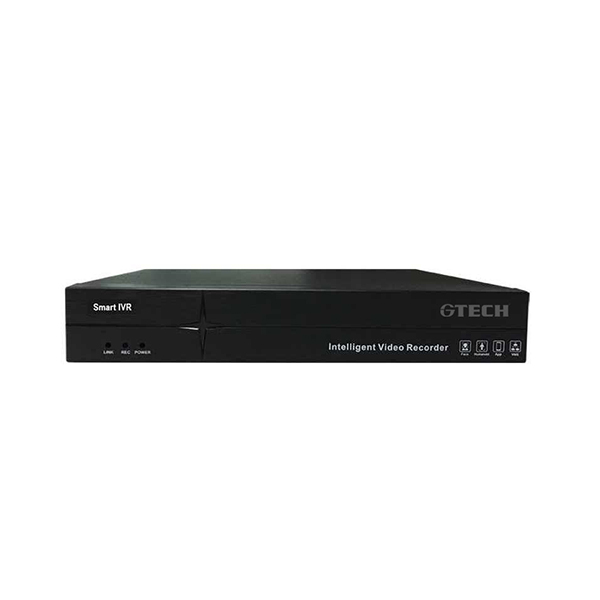

16 Channel 4K NVR
Product Highlights
- Brand : GTECH
- Model: GT-NVR9016-2SA
- Country of Origin Taiwan
- 1 Year Replacement Guarantee
Key Features
- Support H.265+/H.265/H.264 coding front end adaptive access.
- Support ONVIF, Highprofile S, Highprofile G, and can be connected to network cameras that comply with ONVIF, RTSP standards made by many major manufacturers.
- Support IPC front-end Intelligence: target count, object left/lost, area detection, line crossing.
- Support AEeye P2P cloud services, through cloud access, cloud monitoring, cloud forwarding to achieve any terminal access to NVR anytime, anywhere.
- Support immediate playback function under preview screen without affecting other channel preview.
- Support for adaptive bit stream preview and playback 4 screen maximum support 1280*720, single screen 3840*2160.
- Provide networked centralized monitoring and management software.
Description
| Operating System | Embedded LINUX operating system | |
| Video Standard | H.265+/ H.265/H.264 | |
| Intelligent Support | NVR support | Target count, object left/lost, area detection, line crossing |
| IPC support | Various intelligent detection access and linkages such as line crossing, wondering, face, license plate, audio input abnormality, virtual focus and scene change. | |
| Video & Audio Input | Video Input | 32CH 4K, 25CH 2MP, 16CH 4K H.265+/H.265/H.264 IP Camera |
| Bandwidth | 80M | |
| Audio Input | IPC composite stream network audio input | |
| Video & Audio Output | HDMI Output | 1CH，Resolution：4K(3840×2160)/30Hz，1920×1080/60Hz，1600×1200/60Hz，
1280×1024/60Hz，1280×720/60Hz，1024×768/60Hz |
| VGA Output | 1CH，Resolution：1920×1080/60Hz，1280×1024/60Hz，1280×720/60Hz，
1024×768/60Hz |
|
| Audio Output | 1CH，RCA port （Linear level，impedance：1KΩ） | |
| Preview Split | 1/4//9/16 screen | |
| Video & Audio Coding | Video Resolution | 8MP/5MP/4MP/3MP/1080P and below resolution |
| Synchronized Playback | 16ch /9ch /4ch Synchronized Playback（Different in various access modes） | |
| External
Ports |
Audio | 1CH audio input, 1CH audio output，RCA port（Level：2.0Vp-p，impedance：1kΩ） |
| Network | 1 x RJ45 10M/100M adaptive Ethernet port | |
| USB | Front 1x USB2.0; Rear 1x USB2.0 | |
| Alarm | 4 in 1 out alarm | |
| 485 | RS-485 | |
| HDD | HDD Port | 2x SATA |
| MAX Capacity | up to 8TB | |
| Network Management | Network Protocol | UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address) |
| P2P
Remote Monitoring |
AEeye | Supports iPhone, iPad, Android Smart phone |
| Supports Windows 7 and above computer client, supports Apple MAC computer client | ||
| Power Supply | DC 12V3A (external adapter) | |
| Working Temperature | -10℃–＋55℃ | |
| Working Humidity | 10％-90％ | |
| Power Consumption | ≤15W (without HDD) | |
| Dimensions | Device：350mm×240mm×68mm，Packing：409mm×365mm×129mm | |
| Weight (Without HDD) | N.W.：1.3Kg；Packing：2Kg | |
| Installation Method | Desktop installation | |
