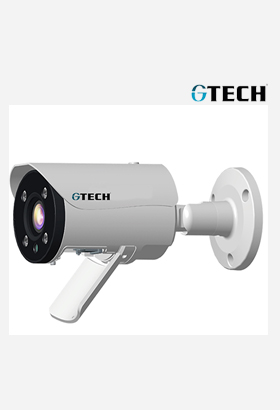

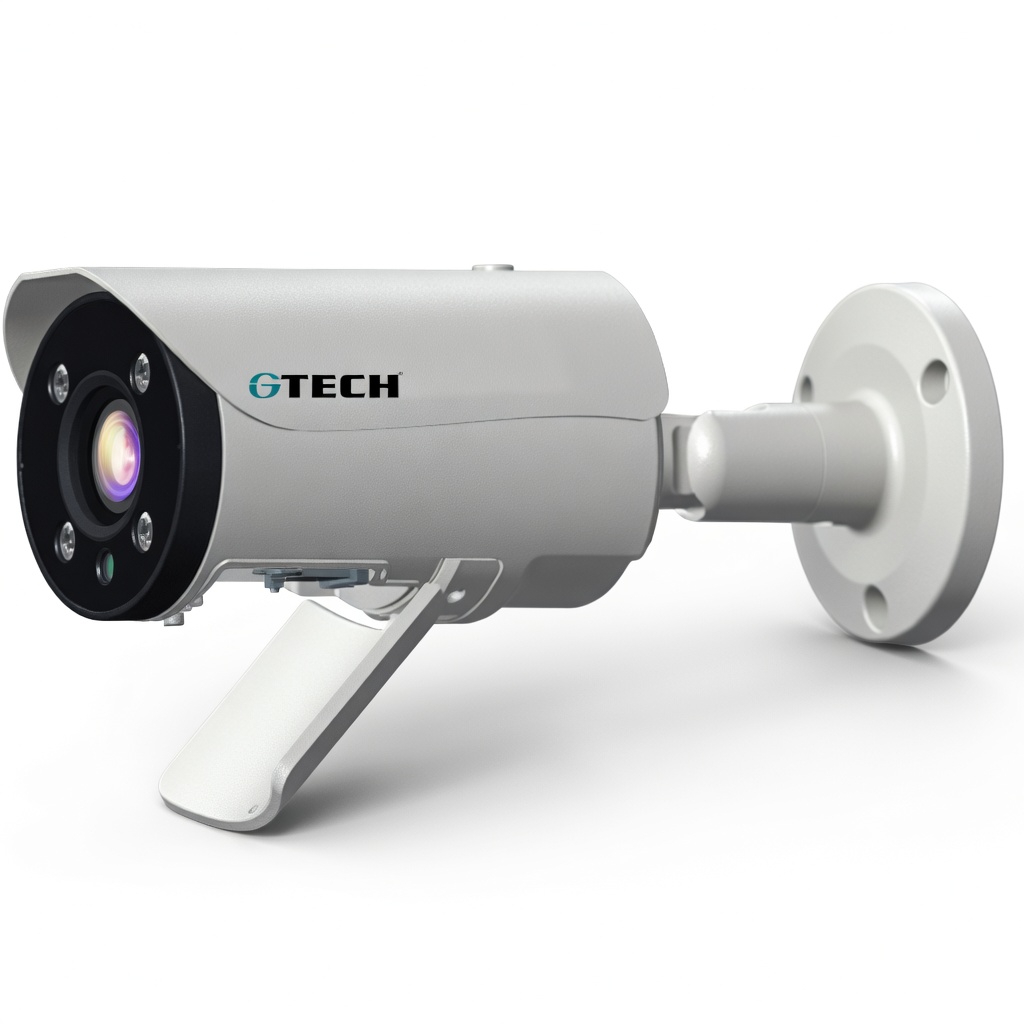

5.0 MP Motorized Veri-Focal PoE IP Camera
Product Highlights
- Brand : GTECH
- Model: GT-IP625(B)S-5.0MP
- Country of Origin Taiwan
- 1 Year Replacement Guarantee
Key Features
- 1/2.5″ 5 MP SONY IMX CMOS sensor, HD full real-time recording;
- Video Resolution : 5M (2560 x 1920 HD)
- Lens : 3.6-12mm Motorized VF
- IR Distance : 40-50Meter 3D DNR
- IR Leds :4x IR III Array IR Lamp
in stock
Description
| BASIC PARAMETER | |
| Solution | SONY + Hi |
| Image Sensor | 1/1.8″ 5 Megapixel CMOS |
| Core Processor | ARM9 Architecture |
| Operating System | Embedded Linux |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.002Lux(F1.2,AGC ON) |
| B/W: 0.001Lux(F1.5,AGC ON); 0 Lux with IR | |
| S/N Ratio | ≥48dB without AGC |
| Shutter Time | 1s to 1/100,000s |
| Lens | 2.8-12mm 5 Megapixel HD Motorized Zoom Lens |
| Adjustment Range | Pan:0° – 355°, Tilt: 0°- 75°, Rotation: 0° – 355° |
| Day& Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 100 dB |
| Digital Noise Reduction | 3D DNR |
| White Balance | Y |
| AGC | Y |
| IRIS Mode | Y |
| DWDR | Y |
| Sharpness | Y |
| Focus | Manual |
| Compression Standard | |
| Video Compression | H.265 , M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM |
| Audio Bit Rate | G711 8KHz, 64kbps ADPCM 8KHz, 32kbps |
| Image | |
| Max. Image Resolution | 5M (2560*1920HD) 1-25(30)fps; |
| Frame Rate | 60Hz: 30fps(1920×1080), 30fps(1280×960), |
| 30fps(1280×720), Up to 1280*720@60fps | |
| Triple Stream (Multiple) | Mainstream: 1080P(1920*1080) |
| Sub stream: D1(704*576) | |
| 3rd stream: 720P(1280*720) | |
| Image Settings | Brightness, Saturation, Contrast, Flip Mode Adjustable |
| by Client Software or Web Browser | |
| HLC | Y |
| Smart Defog | Y |
| Corridor Format | Y, Available for 720P and Above |
| EIS | Y |
| Horizontal viewing angles | 77° (H) / 45° (V) / 88° (D) |
| ROI | 4 Zones |
| Privacy Mask | 4 Zones |
| Picture Overlay | 200 × 200, BMP 24bit, Zone Configurable |
| Network | |
| Remote Access | IE8,IE9,IE10,IE11,Chrome30,Firefox24 |
| CMS Lite, 32CH CMS software for Windows operating system | |
| CMS iOS& Android mobile devices | |
| Network Interface | 1X RJ-45 10/100/1000Mbps Self-adaptive |
| Network Storage | FTP |
| NTP | Y |
| Video Analytics | Tripwire/Perimeter/Crowd/Foreign Oject/Missing Oject/Fast Moving/Loitering/Parking/Scene Change/Blur Image/Abnormal Audio |
| Alarm Trigger | Motion Detection/IP Conflict/MAC Conflict/ |
| Port Alarm/Mask Alarm | |
| Protocols | IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/ |
| DNS/DDNS/NTP/RTSP/TCP/UDP/DHCP/PPPoE | |
| User Permission | 10 Users |
| Remote Connection | 4 Users Access at the Same Time |
| Event Notification | FTP / Email / SMS |
| Security | Multiple user access levels with password |
| System Compatibility | ONVIF (Profile S), SDK,CGI |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | 1-ch |
| Communication Interface | 1-ch RJ45 10M / 100M Ethernet Interface (Lan) |
| Alarm Input | 1-ch |
| Alarm Output | N/A |
| Video Output | N/A |
| General | |
| Language | English, |
| Operating Conditions | -30℃～60℃(IR OFF) /-20℃～40℃(IR ON), 0～95% RHG |
| Operating Humidity | 90 or less relative humidity |
| PoE | Y |
| Power Supply | DC12 V ± 10%, PoE (802.3af) |
| Power Consumption | (±10%) PoE&PoN: 10W; DC adapter: 8.4W |
| Max. 2.6(IR ON)/ (±10%): 250mA (IR OFF) / 700mA (IR ON) | |
| Circuit Protection | TVS 6000V, Lightning/Surge 1000V Protection |
| Impact Protection | IP66 |
| RTC (real-time clock) | Y |
| Digital Pan / Tilt / Zoom | Y |
| IR Distance | 40-50M（4x IR III Array IR Lamp） |
| IR Shift | Auto/Manual |
| Warranty | 01 (one) year comprehensive warranty and replace all parts |
