GTECH

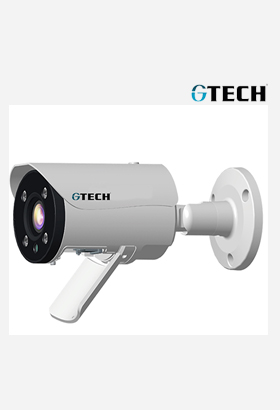

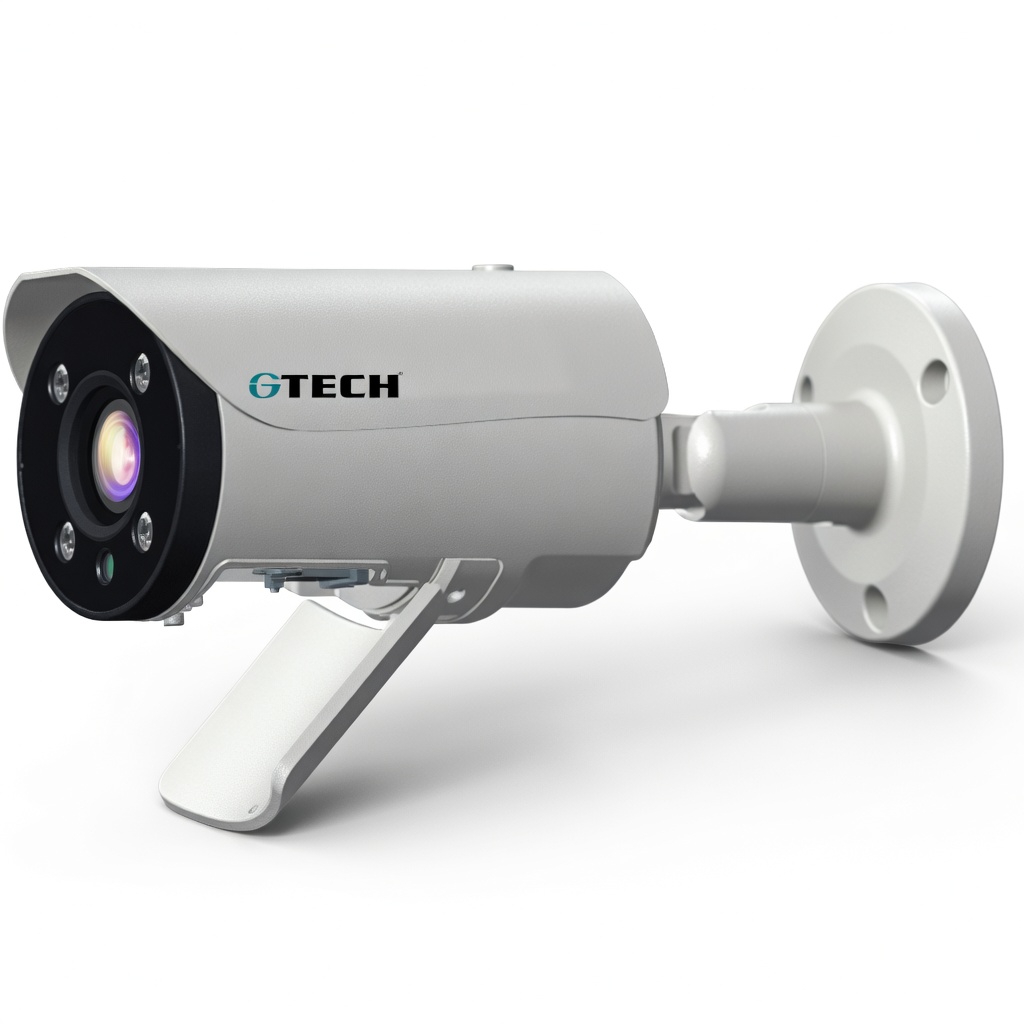

5.0 MP Motorized Veri-Focal PoE IP Camera

Brand : GTECH
Model: GT-IP625(B)S-5.0MP
Country of Origin Taiwan
1 Year Replacement Guarantee

Key Features

1/2.5″ 5 MP SONY IMX CMOS sensor, HD full real-time recording;
Video Resolution : 5M (2560 x 1920 HD)
Lens : 3.6-12mm Motorized VF
IR Distance : 40-50Meter 3D DNR
IR Leds :4x IR III Array IR Lamp

Add to compare

Add to wishlist

Category: IP Camera

Description

BASIC PARAMETER
Solution	SONY + Hi
Image Sensor	1/1.8″ 5 Megapixel CMOS
Core Processor	ARM9 Architecture
Operating System	Embedded Linux
Signal System	PAL/NTSC
Min. Illumination	Color: 0.002Lux(F1.2,AGC ON)
	B/W: 0.001Lux(F1.5,AGC ON); 0 Lux with IR
S/N Ratio	≥48dB without AGC
Shutter Time	1s to 1/100,000s
Lens	2.8-12mm 5 Megapixel HD Motorized Zoom Lens
Adjustment Range	Pan:0° – 355°, Tilt: 0°- 75°, Rotation: 0° – 355°
Day& Night	IR Cut Filter with Auto Switch
Wide Dynamic Range	100 dB
Digital Noise Reduction	3D DNR
White Balance	Y
AGC	Y
IRIS Mode	Y
DWDR	Y
Sharpness	Y
Focus	Manual
Compression Standard
Video Compression	H.265 , M-JPEG
Video Bit Rate	32Kbps~16Mbps
Audio Compression	G.711A/G.711U/ADPCM
Audio Bit Rate	G711 8KHz, 64kbps ADPCM 8KHz, 32kbps
Max. Image Resolution	5M (2560*1920HD) 1-25(30)fps;
Frame Rate	60Hz: 30fps(1920×1080), 30fps(1280×960),
	30fps(1280×720), Up to 1280*720@60fps
Triple Stream (Multiple)	Mainstream: 1080P(1920*1080)
	Sub stream: D1(704*576)
	3rd stream: 720P(1280*720)
Image Settings	Brightness, Saturation, Contrast, Flip Mode Adjustable
	by Client Software or Web Browser
HLC	Y
Smart Defog	Y
Corridor Format	Y, Available for 720P and Above
EIS	Y
Horizontal viewing angles	77° (H) / 45° (V) / 88° (D)
ROI	4 Zones
Privacy Mask	4 Zones
Picture Overlay	200 × 200, BMP 24bit, Zone Configurable
Network
Remote Access	IE8,IE9,IE10,IE11,Chrome30,Firefox24
	CMS Lite, 32CH CMS software for Windows operating system
	CMS iOS& Android mobile devices
Network Interface	1X RJ-45 10/100/1000Mbps Self-adaptive
Network Storage	FTP
NTP	Y
Video Analytics	Tripwire/Perimeter/Crowd/Foreign Oject/Missing Oject/Fast Moving/Loitering/Parking/Scene Change/Blur Image/Abnormal Audio

Alarm Trigger	Motion Detection/IP Conflict/MAC Conflict/
	Port Alarm/Mask Alarm
Protocols	IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/
	DNS/DDNS/NTP/RTSP/TCP/UDP/DHCP/PPPoE
User Permission	10 Users
Remote Connection	4 Users Access at the Same Time
Event Notification	FTP / Email / SMS
Security	Multiple user access levels with password
System Compatibility	ONVIF (Profile S), SDK,CGI
Interface
Audio Input	1-ch
Audio Output	1-ch
Communication Interface	1-ch RJ45 10M / 100M Ethernet Interface (Lan)
Alarm Input	1-ch
Alarm Output	N/A
Video Output	N/A
General
Language	English,
Operating Conditions	-30℃～60℃(IR OFF) /-20℃～40℃(IR ON), 0～95% RHG
Operating Humidity	90 or less relative humidity
PoE	Y
Power Supply	DC12 V ± 10%, PoE (802.3af)
Power Consumption	(±10%) PoE&PoN: 10W; DC adapter: 8.4W
	Max. 2.6(IR ON)/ (±10%): 250mA (IR OFF) / 700mA (IR ON)
Circuit Protection	TVS 6000V, Lightning/Surge 1000V Protection
Impact Protection	IP66
RTC (real-time clock)	Y
Digital Pan / Tilt / Zoom	Y
IR Distance	40-50M（4x IR III Array IR Lamp）
IR Shift	Auto/Manual
Warranty	01 (one) year comprehensive warranty and replace all parts
